CPVC PIPELINE SYSTEMS

1. CPVC PIPELINE SYSTEMS :

CPVC Pipes and fittings (chlorinated polyvinyl chloride) are thermoplastic material which are produced by chlorination of polyvinyl chloride rigid. They can withstand higher temperatures than PVC. They are widely used across diverse industries.

               AnZ Waters provide Chlorinated PolyVinyl Chloride (CPVC) which is a high-temperature plastic pressure piping system introduced for potable plumbing in 1959. A few uses of the same are as follows:

·        Industrial purposes

·        Sanitary purposes

·        Refrigeration purposes

·        Commercial waste system, etc.

Definition-

CPVC, basically, is an even more reacted form of polyvinyl chloride (PVC). It can be used as an abbreviation to Chlorinated Polyvinyl Chloride. It is a polymer that is often used in the manufacturing of plumbing products, structural materials, vents, etc. The polymerization reaction of vinyl chloride results in the formation of CPVC. The chlorination treatment enhances product performance and increases their resistance to fire and corrosion.

Further simplifying, CPVC is produced through PVC, that has undergone further free radical chlorination. Due to the chlorinated additives, it has a yellowish tint which makes it look different from PVC.

The material produced from CPVC need to operate at a recommended maximum temperature, which is upto 200°F.

Why choose CPVC pipes and fittings above all?

The presence of below listed characteristics of CPVC, makes it an excellent choice for en-number of purposes.

·        Chemical resistance- CPVC has the potential to withstand exposure to a harmful chemical and refrain from being degraded.

·        Corrosion resistance- CPVC being a polymerized material, happens to be safe from the harmful effects of corrosion, generally experienced by metals.

·        Low thermal conductivity- CPVC proves to be quite a good insulating material which makes it an excellent option to be used in hot water plumbing systems where consistent temperatures are needed to be maintained.

·        Fire resistance- CPVC possess an inherent property of fire resistance where it forbids the passage of excess heat or flames. It is best for fire sprinkler pipes and fittings.

·        Easy installation- There is no requirement for distinct tools in order to install CPVC pipes. They can be easily joined with the help of solvent cement.

·        Durability- CPVC products are known to last longer than others as they are durable enough and less prone to damage through scaling, cracking or pitting.

·        Potable water compatibility- Owing to the fact that they have the potential to bear up against high temperatures without getting deformed or corroded, they are suitable to transport hot and cold potable water.

·        Self extinguishing- CPVC pipes are able to prevent themselves from catching fire, when exposed to flames.

·        Lightweight- CPVC pipes are light in weight and flexible, which makes it’s handling and installation quite easier than other pipes.

·        Cost effective- They are available at a reasonable rate as compared to metal pipes. Also, the ease in its installation helps reduce the cost.

·        Biofilm resistance- They help to maintain the purity of water by preventing the accumulation of biofilm which otherwise occurs due to the presence of bacteria.

·        Long lasting- Due to their durability and strength, they have a longer lifespan as compared to other pipes.

Is CPVC safe for drinking water?

It is quite crucial for the transportation of potable drinking water that the pipes used for its transportation do not act as a means in making the water unsafe for consumption. Talking about metal pipes- As we know that they are not highly heat resistant and are also a fair deal  prone to corrosion, they may prove to be hazardous to health.

On the contrary, pipes made from CPVC do not bring along with themselves such harm. They are a result of a blend of PVC resin and chlorinated additives. This highly beneficial blend not only makes them highly resistant to heat but also resistant to corrosion. Apart from this, they have also proven to be biofilm resistant, which means that they possess the potential to prevent themselves from the accumulation of microorganisms, if any. Also they do not rely upon any distinct coatings for prevention of contamination.

Applications of CPVC pipes and fittings-

v  Chemical Process  –

Ø  The strong chemical resistance of CPVC pipes and fittings make them ideal for their usage in the chemical industry.

Ø  They are used in Chemical Manufacturing, Galvanizing, Dye & Color, Fertilizer & Chemical Waste.

v  Industrial Process –

Ø  CPVC is  non-leaching and non-toxic to the environment.

Ø  Hence, CPVC pipes and fittings are used in Water & Wastewater Treatment, Cooling Water and Process Water.

v  Food & Beverage –

Ø  Food and beverage industry certainly seek hygienic and contamination-free production.

Ø

      The desired safe production is ensured using CPVC pipes and fittings for Soft/Sports Drink manufacturing, Distilled Water and Wineries.

v  Recreational –   It is quite crucial to sustain water pressure in Swimming Pools, Water Parks, Theme Parks, Water Features & Fountains.

CPVC pipes and fittings can make a remarkable choice for this purpose.

v  Landfill & Waste –

CPVC, being a thermoplastic substance, can be recycled, which is harmless for the environment.

These eco-friendly CPVC pipes and fittings are used in Methane Recovery, Condensate-Leachate Storage, Desilting.

v  Laboratories –

The non-corrosive and chemical-resistant nature of CPVC pipes and fittings makes them suitable for Chemical Waste & Neutralization, Chemical Handling, Potable Water, Eyewash Systems, Deionized Water Conveyance.

v  Shipbuilding –

CPVC not only possesses improved fire performance but also resistance to marine water.

This makes CPVC pipes and fittings an ideal solution for Potable Water, Black & Gray Water Drainage, Vacuum Flush, Accommodations, Galleys, Ballast Water Treatment.

v  Power Generation –

CPVC pipes and fittings are effectively resistant to most acids, bases and salts which can handle the hazardous chemicals involved in power generation.

Due to this, they can be used in Ethanol Plants, Coal Mining, Oil Fields, Refineries, Boiler Feed Water, Mines, Gas Industry, Bio-Fuels, Cooling Water

v  Plumbing –

CPVC pipes and fittings prove to be a terrific solution for various plumbing needs owing to their wide range of sizes, durable construction and reliable fittings.

They can be installed in  Apartments, High Rise Buildings, Hotel/Motel, Residential areas.

v  Aquaculture –

         CPVC pipes and fittings are resistant to saltwater corrosion and possess the potential to bear up against  harsh environmental conditions, ensuring sustainable water management.

 They can be used in

Fish Hatcheries, Fish Farming, Retail & Restaurant Aquariums.

v  Agriculture & AG – CPVC pipes and fittings are also useful in Commercial & Residential Irrigation, Golf Courses, Sports Complexes, Green Houses, Farming.

v  Zoo & Aquarium -CPVC pipes and fittings play a major role in Mechanical & Chemical Filtration, Ozone Life Support,Holding Tanks, Foam Fractionators

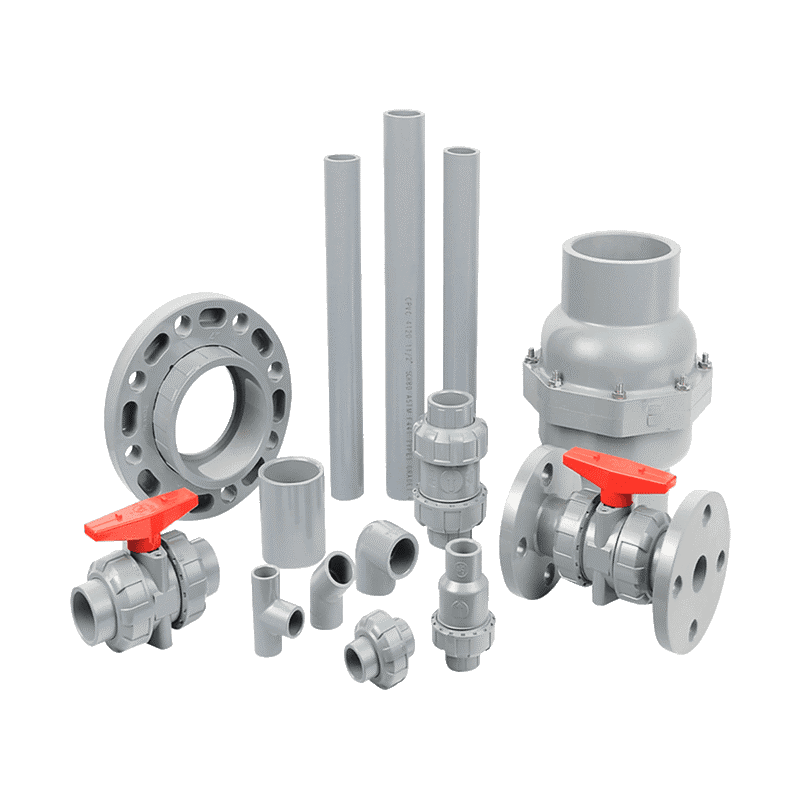

AnZ waters have a wide range of CPVC pipes, fittings and  valves that are listed below-

·         CPVC pipes sch 80

·         CPVC coupling sch 80

·         CPVC TEE sch 80

·         CPVC elbow sch 80

·         CPVC reducer sch 80

·         CPVC y-strainer

·         CPVC male adapter sch 80

·         CPVC female adapter sch 80

·         CPVC threaded fittings sch 80

·         CPVC valve

·         CPVC ball valve

·         CPVC diaphragm valve

·         CPVC primer

·         CPVC glue

,
